Control System

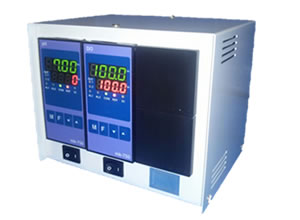

One loop controller

Using a few Single loop controllers is excellent in cost performance for building a measurefewmnet and control system with a few items.

Features

  • Our recommendation: The mk-750 series controller by ASR(Automatic System research Co.,Ltd.)
  • Controller(pH, DO, Anti-foamin and etc)  available
  • A box for mounting the controllers and peristaltic pumps available
One loop controller

Bioprocess controller D

Integrated desk top instrumentation system for small size fermentor's measurement, control and networking.

Features

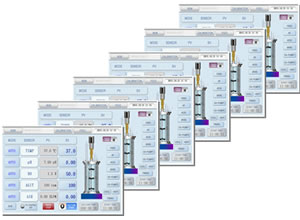

  • 7 inch color graphic touch panel for good visibility and operability
  • Factory equipped with thermal mass flow meter for precise control of air flow rate
  • Applicable to both top entry driving and bottom enntry stirring system
  • Flexible arrangement of fermentor vessel from the controller
  • The same kind of performance as large scale fermentor
  • Kinds of feeding control mode such as pH stat, DO stat, time driven control and so on
Bioprocess controller D

Bioprocess controller P

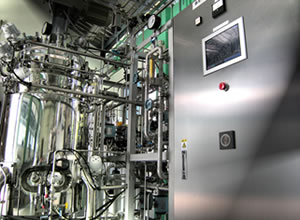

Integrated system of supervisory control for not only fermentor but another up/down stream equipment including sequential control(e.g. SIP), analog loops' control and alarming

Features

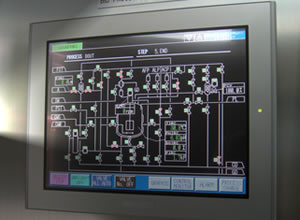

  • Graphic Touch Panel(more than 10 inch size) used as MMI(Man Machine Interface) for easy operation
  • Menu-driven operation for the necessary monitoring and procedures(e.g. switching, setting, etc)
  • Ready to customize the MMI by discussion to meet the demand of your bioprocess control
  • Bioprocess controller P
  • Bioprocess controller P

Suoervisory control software D

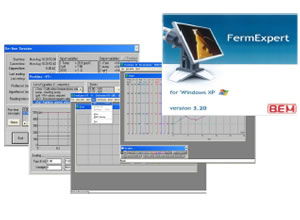

PC software(Ferm Expert) for fermentation process's supervisory contrl, data logging and analysis.

Features

  • Interactive communication between PC and controller
  • Stored data useable as CSV file
  • Culture process profile shown on a chart
  • Library for analysis of culture process parameters
  • Controllable for multi-fermentors simultaneously(Max.6 fermentos)
Supervisory control software D

We're always ready to have your inquiry
about our products and services.
