Desk top fermentor

A Compact fermentor that suits determining the suitable culture condition for scaling up and basic research.
Several sizes of autoclavable vessel are available up to 10 liters.
Our original hollowed bottom end plate enables mild heating and rapid cooling for precise temperature control.
Although compact, it has full scale function required for large scale fementor.
Either top or bottom entry driving system is available in accordance with the characteristics of the culture process.
Various types of stirring impeller are available according to the requirement of the culture process such as highly efficient oxygen tarnsfer rate, highly viscous culture broth or low shear stress.
We can supply various types of fermentor not only for aerobic microbes but also for the another cells such as anaerobes, ultra thermophillic bacteria, micro algae, mammalian suspension cells and so on.
You can make a choice from our series of fermentor according to your requiremennt for your bioprocess.
Bioneer-Neo seiries: The latest model of Bioprocess Controller with Max.12 channels of measurement item.
Bioneer sreies:Long time seller standard model of Bioporcess controller with Max.8 channels of measurement item
MDL series: Long time seller model fermentor equipped with basic function for fermentor control(Temperature, agitation) and air flow rate changing

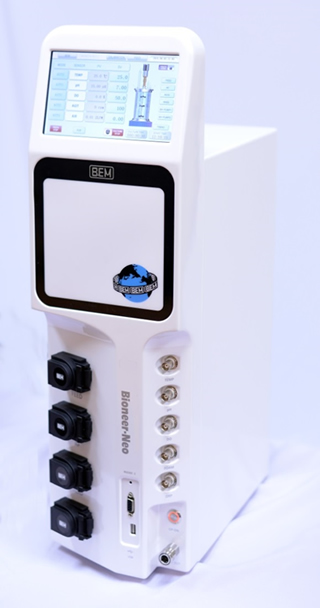

Bioneer-Neo Series

The latest model of Bioprocess Controller with Max.12 channels of measurement item.

Features

Easy operation  with the 7-inch wide color graphic touch panel.
This model is factory equipped with the following items as described below.
-Mass flow controller for air flow rate control
USB port for saving data of each culture process in CSV format
-Transduce for measuring ORP(Redox Potential)
-Some kinds of feeding control mode
-RS232c serial port for connecting versatile electronic balance
-Packaged program for various modes of feeding control
-e.g. Elapsed time based program, pH stat, DO stat, turbidostat, chmostat continuous
Compact  body 188mm width
Top entry driving system is also available for versatile cultureprocess.
Bioneer-Neoシリーズ(最新モデル)

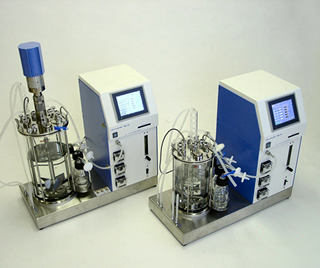

Bioneer Series

All in one type desktop fermentor with a 5.7 inch color touch panel.
Long time seller model of Bioprocess controller since 2001.

Features

5.7 inch color touch panel for M-M interface.
Capable of controlling up to 8 items. (Temperature, pH, DO,agitation speed and anti-foaming as the standard control and ORP(redox), turbidity, O2, CO2 in exit gas as optional measurement).
Max.6 controllers can be connected with a PC for data acquisition and monitoring control.
Bioneerシリーズ

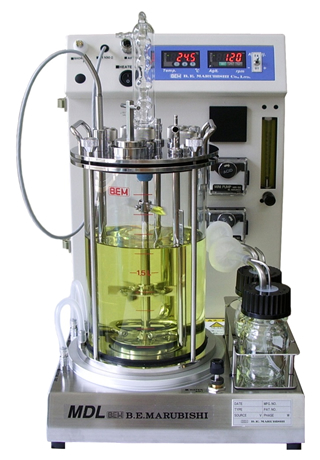

MDL Series

A long selling model fermentor of basically essential function with desk top convenience.

Feature

  • Low cost
  • Compact size
  • Seven sizes of vessel available; 0.5, 1, 2, 3, 5, 7.5 and 10 liters
  • Top entry driving system is also available for versatile culture process
MDLシリーズ

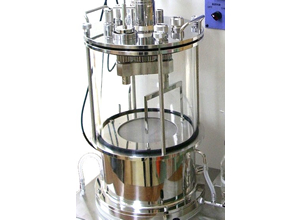

Pressurized culture fermentor

The fermentor to increase  oxygen supply by applying pressure to the vessel.

Fearture

  • Maximum pressure 0.2MPa(G)
    *Over 0.2MPa(G) is available if requested
  • Vessel volume is available from 2L to 10L
加圧型培養装置

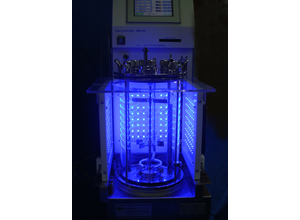

Autotrophycally culture fermentor

Fermentor which provides effective light source for such as algae,microalgae,phototropic bacteria culture.

Feature

  • Line-up of multiple light source(e.g. white LED, CCFL,fluorescent light)

  • Vessel volume can be choosed from 0.5 to 10L
  • Available for varius culture scale(e.g. test tube,Roux flask,Glass culture vessel, Stainless cuture vessel)
  • Proven in the fields of phototropic bacteria cyanobacteria blue algae  Euglena  Chlorella vulgaris Botryococcus Aurantiochytrium cuture
光合成培養装置

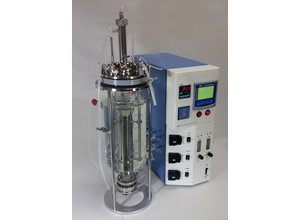

Airlift fermentor

Fermentor which circulate the medium by only by aeration.

Feature

  • No need for agitation power
  • Easy to wash the inner parts of the vessel
エアリフト培養装置

Autoclavable Solid state culture fermentor

Fermentor for solid state culture such as Koji (rice mold, soy beans).

特長

  • Intermittent agitation for flaking the solid state medium with adjustable time interval
  • Humidity change by intermittent spraying of sterile water in the fermentor vessel
固体培養装置
